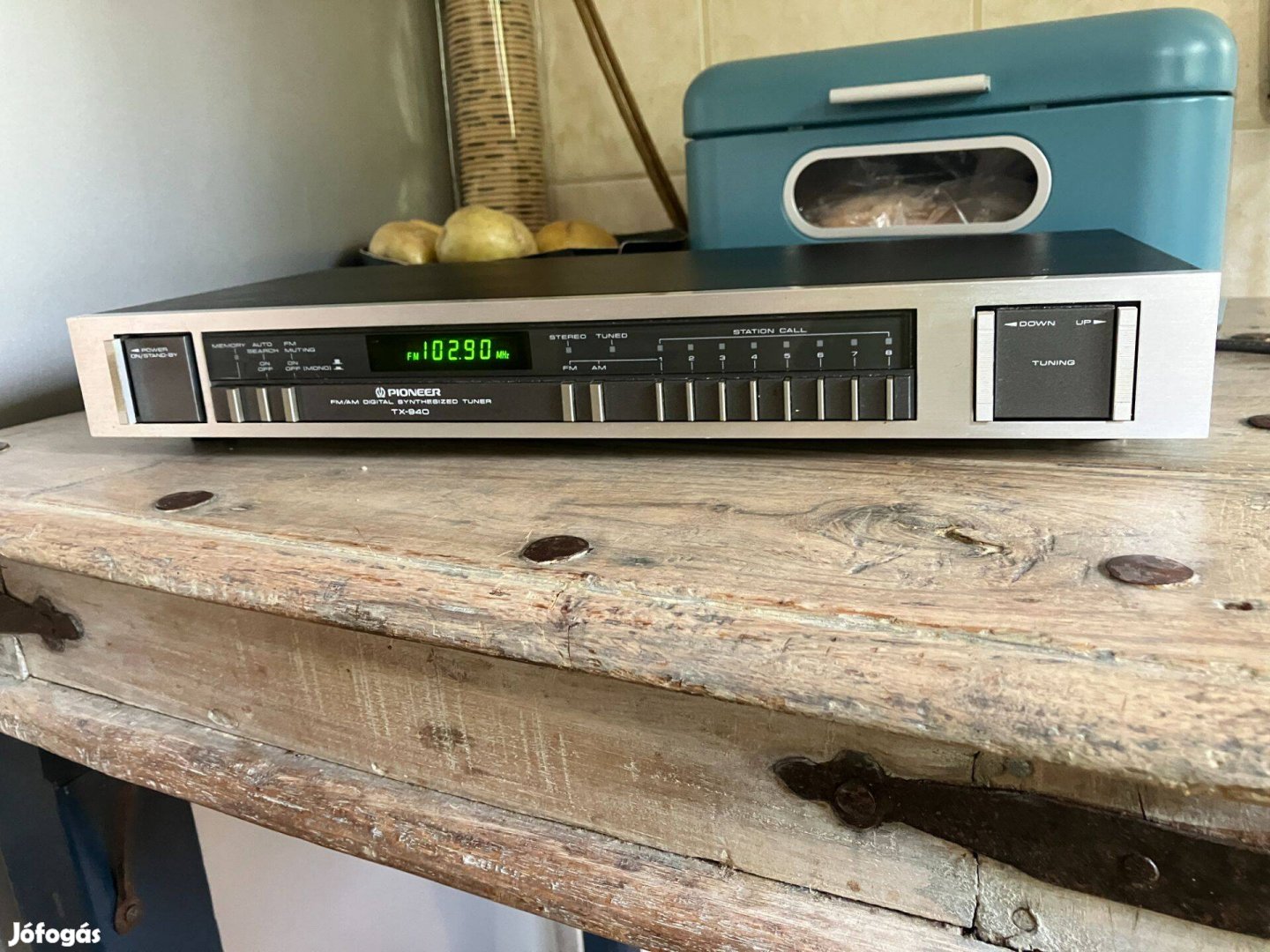

Pioneer TX-940 tuner szép állapotban

Eladó a képeken látható, szép állapotú, jól működő tuner. Helyben Dunaföldváron átvehető, illetve meghallgatható. De átvehető Budapesten az Infóparkban is. Emellett futárral is el tudom küldeni. Foxpost csak egy telefonos egyeztetés után lehetséges.

Bármilyen kérdésedre szívesen válaszolok. Ha véletlenül munka miatt nem vagyok elérhető telefonon, akkor írjon egy sms-t és visszahívom.

Number of Transistors
Semiconductors present.
Semiconductors
Main principle
PLL, Phase-locked loop
Wave bands
Broadcast, Long Wave and FM or UHF.
Details
Hi-Fi equipment
Power type and voltage
Alternating Current supply (AC) / 220; 240 Volt
Loudspeaker
- For headphones or amp.
Material
Metal case
from Radiomuseum.org
Model: FM/AM Digital Synthesized Tuner TX-940L - Pioneer Corporation; Tokyo
Shape
Book-shelf unit.
Dimensions (Whd)
420 x 60 x 223 mm / 16.5 x 2.4 x 8.8 inch
Notes
A 3 band AM/FM stereo digital synthesized tuner with a digital frequency display. Memory for 8 FM and 8 AM preset radio stations. Push button switches for Memory, Auto Search, FM Muting, Band Selection (FM, MW, LW), Station Call (1 - 8), Tuning Down and Tuning Up, indicators for FM Stereo, Tuned, Terminals for AM and FM antennae, RCA Line Output sockets.

Specification
FM Tuner Section
Frequency Range 87.5-108.0MHz
Usable Sensitivity Mono; 10.8dBf (0.95V), 75
50dB Quieting Sensitivity Mono; 16.2dBf (1.8V), 75
Stereo, 37.2dBf (19.8V), 75
Signal-to-Noise Ratio (at 85dBf input) Mono; 85dB
Stereo; 80dB
Total Harmonic Distortion Mono; 0.05% (1kHz)
Stereo; 0.08% (1kHz)
Capture Ratio 1.0dB
Alternate Channel Selectivity 400kHz 56dB
Stereo Separation 1kHz, 50dB
Frequency Response 30Hz-15kHz +0.5dB,-1dB
Image Response Ratio 50dB
IF Response Ratio 80dB
Spurious Response Ratio 70dB
AM Suppression Ratio 60dB
Muting Threshold 30dBf (8.5V), 75
Antenna Input 300 balanced, 75 unbalanced
AM Tuner Section
Frequency Range MW: 522-1611kHz, LW: 153-360kHz
Usable Sensitivity (loop antenna) MW: 250Vm, LW: 1200V/m
IF Response Ratio MW: 50dB, LW: 40dB
Selectivity 40dB
Signal-to-Noise Ratio 50dB
Image Response Ratio 35dB
Antenna Loop antenna (supplied)
Output Section
Output Terminals (Output Level) FM (100% MOD) Fixed 700mV
AM (30% MOD) Fixed 150mV
Versions/Power requirements

HE Europe 220 V AC 50/60Hz
HB UK 240 V AC 50/60Hz
Power consumption: 8.5 Watts

Net weight (2.2 lb = 1 kg)
2.5 kg / 5 lb 8.1 oz (5.507 lb)
