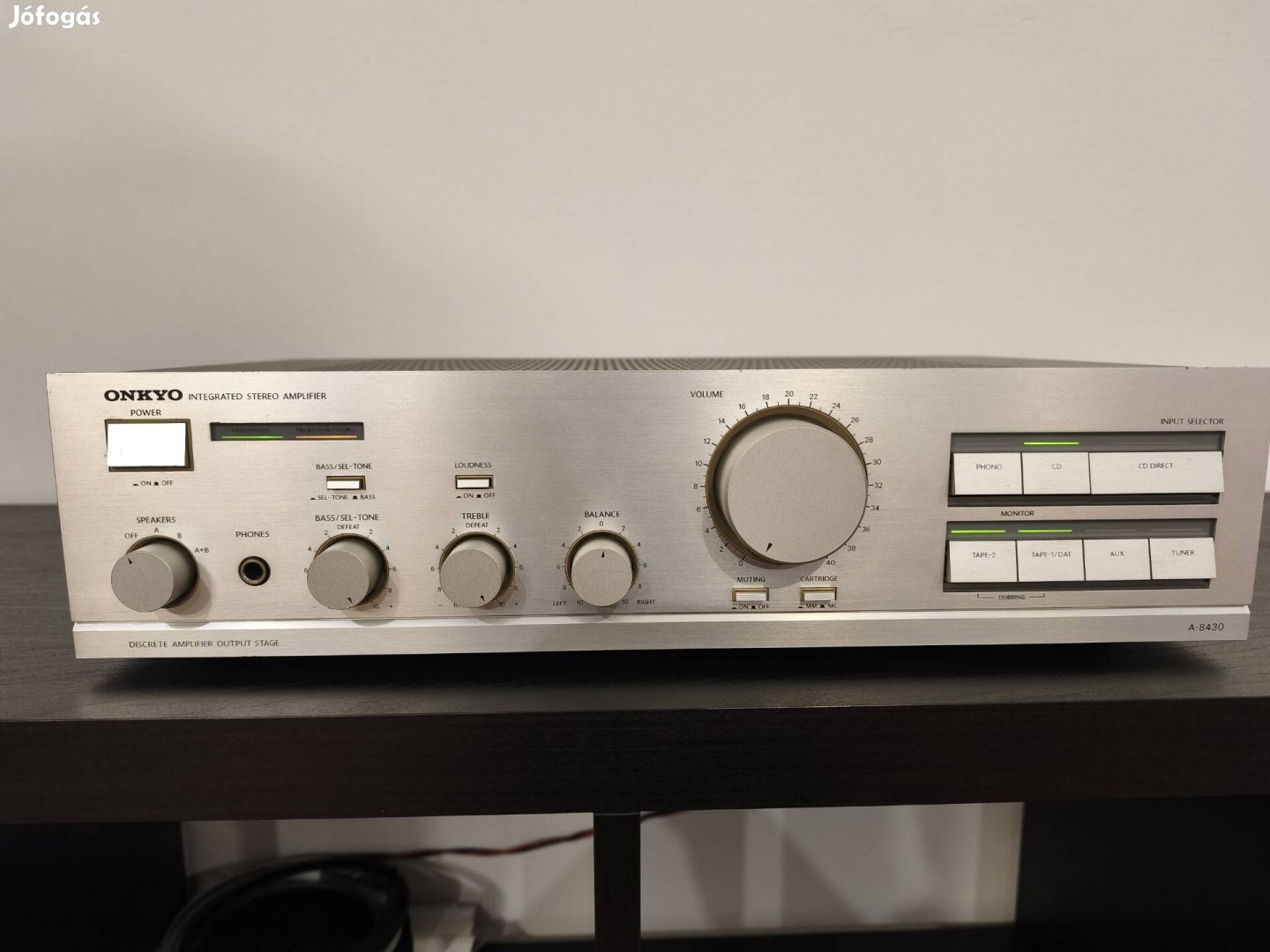

Onkyo A-8430 erősítő

Eladó Onkyo erősítő a képeken látható állapotban
Tökéletesen működik

General

Manufacturer: Onkyo
Model: A-8430
Years of manufacture: 1988, 1989
Manufactured in:
Color: silver, black
Type: Analog
Remote control: No
Power consumption:
Dimensions: 435 x 110 x 272 mm (Wxhxd).
Weight: 7.0 kg
Original price approx:

Connections

Number of inputs: 6
Phono-MM: 2,5 mV/50 kohm
Phono-MC: 350 mV/330 Ohm
Tuner, CD, Aux, 2x Tape: 150 mV/50 kohm
Number of outputs: 3
Headphones (6,3mm jack)
2x Tape Rec 150 mV/4,5 kohm

2x loudspeakers (when connecting 4 loudspeakers 8 Ohm impedance minimum)

Technical Data

Continuous power (at distortion)
8 Ohm: 2x 60 Watt <= 0,06%
4 Ohm: 2x 80 Watt
Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.06%
Attenuation factor: 40 (at 8 Ohm)
Frequency response: 15 - 30,000 Hz ?1dB
Signal-to-noise ratio phono MM: 83 dB (IHF A), 5 mV input
Signal-to-noise ratio CD & Tape: 95 dB (IHF A)

Stereo Channel Separation:
Tone control:
Bass: ?10dB at 100Hz
Treble: ?10dB at 10kHz

Loudness: yes (+7dB at 70Hz, +5dB at 10kHz)
High Filter: No
Low Filter (Subsonic): No
Mute: Yes
Direct/Line-Straight: Yes
