nov 11., 14:12Beépíthető Kapacítás és Feszültségmérő DC 8-30V-ig USB (5776 (Kategória: Egyéb Eszközök)<p>Beépíthető Kapacítás és Feszültségmérő DC 8-30V-ig, USB-C és
USB-3.0 kimenetelekkel.</p>
<p>Használható, lithium, AGM, savas, zselés akkumulátorokhoz
egyránt, de akár egy motorkerékpár, vagy egy hajó mŰszerfalába is
beépíthető.</p>
<p></p>
<p>Features:</p>
<p>1. Measurement of ternary lithium battery L: L03 to L07
(power-off memory)</p>
<p>2. Measurement of lead-acid battery P: DC12V, DC24V (power-off
memory)</p>
<p>3. Measurement of iron-lithium battery F: F03 to F08 (power-off
memory)</p>
<p>4. Custom setting of high and low voltage range: DC8-30V</p>
<p>5. The front is the power on/off button, and the back is the
setting button. Please set the parameters before installation and
use</p>
<p> </p>
<p>Product parameters:</p>
<p>1. Voltage detection range: DC8-30V</p>
<p>2. Working current: <15mA (without charging function)</p>
<p>3. Display mode: LCD screen</p>
<p>4. Display color: green/white/blue</p>
<p>5. Model: 6140</p>
<p>6. Temperature display (optional)</p>
<p>7. USB output: QC2.0, QC3.0, maximum output 18W (5V-3.4A, 9V-2A,
12V-1.5A)</p>
<p>8. Typec output: QC2.0, QC3.0, maximum output 18W (5V-3.1A,
7V-2.4A, 9V-2A, 12V-1.5A)</p>
<p>9. Detection accuracy: 1%</p>
<p>10. Refresh rate: 500ms/time</p>
<p>11. Installation size: 58.5mm*36.5mm</p>
<p>12. Appearance size: 61mm*40mm*22mm</p>
<p> </p>
<p>Mode description Press the power on/off button for 2 seconds on
the main page to enter the mode setting page, and then press the
back setting button for 2 seconds to exit the setting page and
return to the main page.</p>
<p>Mode 1 -- Lead-acid P setting;</p>
<p>Mode 2 -- Ternary lithium L setting;</p>
<p>Mode 3 -- Iron lithium F setting;</p>
<p>Mode 4 -- Custom high and low voltage settings;</p>
<p>Mode 5 -- Low voltage alarm setting (alarm when voltage is lower
than this parameter);</p>
<p>Mode 6 -- Backlight time setting;</p>
<p> </p>
<p>Note:</p>
<p>There are two types of lithium batteries (ternary lithium L and
iron lithium F). Let me tell you how to distinguish them. First,
fully charge the battery. The saturation voltage of a string of
ternary lithium batteries is DC4.2V, and the saturation voltage of
a string of iron lithium batteries is DC3.6V. For example: the
saturation voltage shows 29.4V (7 strings), which is a ternary
lithium battery. Then select the parameters according to the
setting mode of the ternary lithium battery.</p>
<p> </p>
<p> </p>

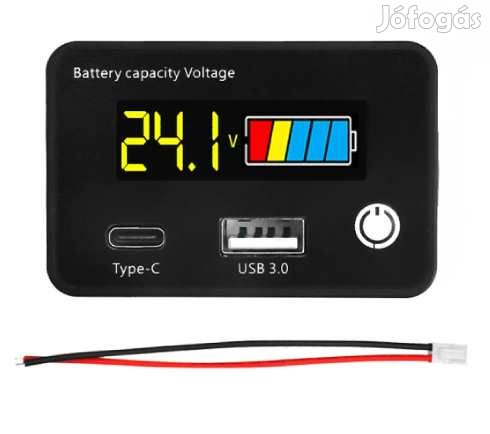

<p>LCD green light display battery tester * 1 + line * 1</p>
<p> </p>
<p> </p>
<p>Product parameters</p>
<p> </p>
<p>Voltage detection range: DC8-30V 2. Working current: <15mA
(without charging function)</p>
<p>Display mode: LCD screen 4. Display color: green</p>
<p>Model: 6140 6. Temperature display (optional)</p>
<p>USB output: QC2.0, QC3.0, maximum output 18W (5V-3.4A, 9V-2A,
12V-1.5A)</p>
<p>Typec output: QC2.0, QC3.0, maximum output 18W (5V-3.1A,
7V-2.4A, 9V-2A, 12V-1.5A)</p>
<p>Performance</p>
<p> </p>
<p>Detection accuracy: 1% 2. Installation size: 58.5mm*36.5mm</p>
<p>Refresh speed: 500ms/time 4: Appearance size: 61mm*40mm*22mm
Product Description L measurement of ternary lithium battery: L03
series to L07 series (power-off memory) P measurement of lead-acid
battery: DC12V, DC24V (power-off memory) Iron-lithium battery F
measurement: F03 series to F08 series (power-off memory) Custom
setting high and low voltage range: DC8-30V The front is the on/off
button, and the back is the setting button. Please set the button
parameters before installing and using Mode Description On the main
page, long press the on/off button for 2 seconds to enter the mode
setting page, and then long press the back setting button for 2
seconds to exit the setting page and return to the main page. Mode
1 -- lead acid P setting; Mode 2 -- ternary lithium L setting; Mode
3 -- Iron Lithium F setting; Mode 4 -- custom high and low settings
voltage; Mode 5 -- low voltage alarm setting (alarm when the
voltage is lower than this parameter); Mode 6 -- backlight time
setting;
