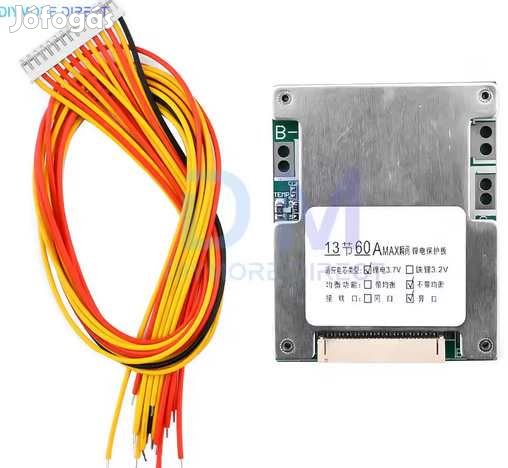

BMS 13S 48V 60A Balanced Li-Ion Akku Pakkokhoz (5849)

BMS 13S 48V 60A Balanced Li-Ion Akku Pakkokhoz (5849) (Kategória: Ponthegesztő Gépek Elemek Hegesztéséhez)<p>BMS 13S 48V 60A Balanced Li-Ion Akku Pakkokhoz</p>
<p></p>
<p></p>
<p>Features.</p>
<p>Overload protection, over-discharge protection</p>
<p>Over-current protection, short-circuit protection</p>
<p>With temperature control protection function, safe and
reliable</p>
<p>Wide range of application, suitable for electric cars, electric
power-assisted vehicles, skateboards, inverters, etc.</p>
<p>Applicable to 13 series lithium-ion batteries, can be used for
3.7V ternary batteries, manganese acid batteries and cobalt acid
batteries.</p>
<p> </p>
<p>Product parameters.</p>
<p>Style: 13S 48V/60A split-port</p>
<p>Wiring method: sub-port</p>
<p>Applicable battery type: 3.7V ternary batteries, lithium
cobalt-acid, lithium manganese-acid batteries</p>
<p>Equalization charging function: without equalization</p>
<p>Applicable voltage: 48V</p>
<p>Applicable power: <2500W</p>
<p>Max. working current: 60A</p>
<p>Max. DC current: 50A</p>
<p>Over-discharge protection voltage: 2.6 V</p>
<p>Overcharge protection voltage: 4.25V</p>
<p>Charging current: 10A MAX</p>
<p>Temperature protection: with this function</p>
<p>Discharge high temperature: 75</p>
<p>Low temperature load: -7</p>
<p>Application areas: electric car, twister, electric
power-assisted vehicle, scooter, inverter, etc.</p>
<p>Function description: Lithium battery overcharge protection;
over discharge protection; over current protection; output short
circuit protection.</p>
<p> </p>
<p>Assembly instructions.</p>
<p>1, the first battery for voltage pairing, the difference
<0.1V;</p>
<p>2, the battery's internal resistance pairing, the difference
between the internal resistance "5m;</p>
<p>3, the battery spot welding, test the voltage is normal;</p>
<p>4, the board is soldered nickel sheet;</p>
<p>5, according to BO, B1, B2, B + order to connect the board to
the lithium battery.</p>
<p>6, please pay attention to the output power to configure the
size of the nickel sheet;</p>
<p>7, pay attention not to short circuit P+ P- repeatedly, there
will be circuit voltage spikes, easy to cause MOS tube damage;</p>
<p>8, pay attention, do not let the protection board touch the
water, easy to damage!</p>
<p>9, welding the board, please pay attention to anti-static
operation!</p>
<p> </p>
<p>Product list.</p>
<p>Protection board x 1</p>
<p data-spm-anchor-id="a2g0o.detail.1000023.i0.6306uJfZuJfZXh">
Lineup x 1</p>
<p> </p>
<p> </p>
<p> </p>
<p>S16 20241226</p>
